Let’s face it: the stock rubber cable that came with your keyboard is boring. It sits on your desk, tangled and lifeless, detracting from the expensive keycaps and custom case you spent months curating. You’ve seen those aesthetic setups on Instagram—the ones with the perfectly springy, double-sleeved cables—and checked the price tags. Spending $50 to $80 on a wire seems steep, doesn’t it?
The solution is simpler than you think. Building your own DIY coiled keyboard cable is not only cost-effective but also arguably the most satisfying project in the mechanical keyboard hobby.
Whether you want to match a specific keycap set or just want the bragging rights of a handmade setup, this guide is for you. We will cover everything from double-sleeving to the critical reverse coiling technique that ensures your coil stays tight forever.
Tools and Materials: The Coiled Cable Starter Pack
Before we dive into the heat and solder, you need the right ingredients. This isn't just about grabbing a wire; it's about combining materials that provide durability and aesthetics.
- 4-Core Shielded USB Cable: The vein of your project (28AWG is standard).
- Paracord 550: The base color layer.
- Techflex (1/8 inch): The outer mesh layer that gives the cable that "premium" double-sleeved look.
- GX12 or GX16 Aviator Connector: For that detachable, industrial aesthetic.
- USB Connectors: Usually USB-A for the PC side and USB-C for the keyboard.
- Heat Shrink Tubing: To cover your solder joints cleanly.
- Coiling Rod: A 1/2 inch drumstick or a metal rod works best.
- Heat Gun: Essential for the process. A hair dryer usually won't get hot enough.
Once you have these materials, you are ready to transform raw wire into a desk centerpiece.
Step 1: Sleeving Preparation and "Snake" Method
The foundation of a good DIY coiled keyboard cable is the sleeving. If this is loose, the coil will look sloppy.
First, strip your USB cable casing carefully. You want to expose the four internal wires (usually Red, White, Green, and Black) and the shielding drain wire. Thread your raw cable through the Paracord. A pro tip here is to melt the tip of the Paracord and the wire slightly to fuse them, then pull it through.
Next comes the Techflex. This expands like a snake. Push it over the Paracord to create that distinct "mesh" texture. This double-layering adds rigidity, which is crucial for the coil to hold its shape later.
Step 2: How to Coil Cable with Heat Gun (The Heating Phase)
This is the moment of truth. Learning how to coil cable with heat gun tools correctly differentiates a novice from a master.
- Secure the Start: Tape one end of your sleeved cable tightly to your coiling rod using electrical tape.
- The Wrap: Rotate the rod, wrapping the cable tightly. Keep the loops extremely close together. No gaps allowed! Use your thumb to push back against the previous loops as you wind.
- Secure the End: Tape the other end down tightly.
- Heating: Turn your heat gun to a medium-high setting (around 100°C - 120°C). Hold the gun about 3-4 inches away from the coil. Move back and forth constantly. Do not linger in one spot, or you will melt the Techflex.
Heat the coil for about 5-10 minutes until it feels hot to the touch all the way through. Now, let it cool completely. Do not touch it while it is cooling. Patience is key here.
Step 3: The Secret Sauce – Reverse Coiling Technique
If you stop at Step 2, your coil will eventually loosen. To get that "snappy," spring-like quality, you must use the reverse coiling technique.
Once your cable has cooled completely (give it an hour), remove the tape and slide it off the rod. It will look like a spring. Now, here is the trick: You need to invert the coil.
Grab one end of the coil and start winding it against the natural direction of the loops. You are essentially turning the coil inside out. It will fight you, but keep wrapping it around the rod in this reverse direction. Tape it down again.
Repeat the heating process with the heat gun. Let it cool for another hour (or toss it in the freezer for 20 minutes). When you release it this time, the tension will be incredibly tight. This is how vendors make cables that snap back perfectly.
Step 4: Aviator Connector Soldering Guide
The "aviator" connector makes the cable look tactical and allows you to swap device ends. However, soldering these requires precision. Here is your aviator connector soldering guide.
The GX12/16 connector has numbers printed on the plastic housing next to the pins (1, 2, 3, 4). You must match the wire colors on both the male and female sides perfectly.
Standard USB to Aviator Pinout
| Pin Number | Standard Wire Color | Function |
|---|---|---|
| Pin 1 | Red | VCC (+5V) |
| Pin 2 | White | Data - |
| Pin 3 | Green | Data + |
| Pin 4 | Black | GND (Ground) |
Steps:
- Tinning: Apply a small amount of solder to the tip of your wire and the cup of the aviator pin separately before joining them.
- Sleeving Management: Don't forget to slide your heat shrink and the metal housing of the aviator connector onto the cable before you solder the wires!
- The Joint: Touch the tinned wire to the tinned cup and apply heat. They should fuse instantly.
For a deeper dive into electronics soldering safety, check out this guide on soldering basics.
Pairing Your Cable with the Right Board
You’ve spent hours crafting the perfect cable; don't plug it into a subpar keyboard. The aesthetic of a coiled cable works best with keyboards that feature clean lines and premium cases.

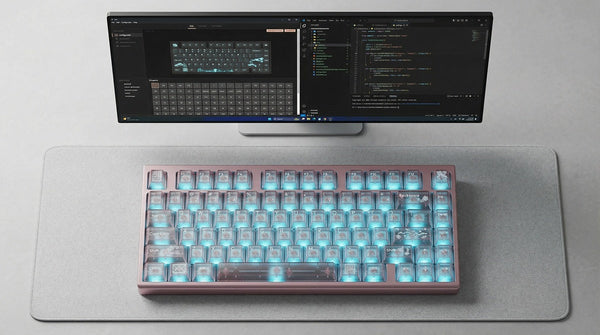

If you are looking for a board that deserves your new handmade cable, consider the NPKC RO75 PRO Mechanical Keyboard. Its gasket-mounted structure and programmable screen create a high-tech vibe that complements the industrial look of an aviator connector perfectly. Plus, the RGB underglow will reflect beautifully off your Techflex mesh.
NPKC RO75 PRO Mechanical Keyboard
Building a complete setup? Make sure to check our other guides. Once your cable is ready, you might want to explore how to get that creamy keyboard sound with PE foam or ensure your inputs are smooth by reading the ultimate guide to lubing magnetic switches.
Video Tutorial: Visualizing the Coil
Sometimes, seeing is believing. While we can't be there to hold the heat gun for you, this visualization helps understand the "reverse coiling" motion.
Community Showcase (UGC)
We asked our community to show us their first DIY cable attempts. Here is what determination looks like:
"I burned my first Techflex by holding the heat gun too close. Second try? Perfect. The reverse coiling technique is a game changer for the snap-back!"
— Alex T., Discord Member
"Paired my custom white/gold cable with the NPKC RO75 PRO. The knob on the keyboard matches the aviator connector perfectly. Best weekend project ever."
— Sarah L., Instagram User
Frequently Asked Questions (FAQ)
1. How long can my DIY coiled cable be?
Generally, you should keep the total length of the wire (coil + straight cable) under 3 meters (approx 10 feet). If it's too long, you may experience power drops, especially with power-hungry RGB keyboards like the RO75 PRO.
2. Is the "Reverse Coiling Technique" actually necessary?
Yes. If you skip it, your coil will look great for a week, but over time it will relax and look like a loose telephone cord. Reverse coiling aligns the plastic memory of the sleeving with the wire.
3. Can I use a hair dryer instead of a heat gun?
It is not recommended. Most hair dryers do not reach the temperatures required to properly soften the Techflex and plastic cable insulation for permanent shaping. A heat gun is a necessary investment.
4. My cable works but the keyboard LEDs are dim, why?
This is usually due to resistance. Either your cable is too long, your solder joints are "cold" (poor connection), or the wire gauge is too thin (use 28AWG or thicker).
5. Can I use this guide for USB-C to USB-C cables?
USB-C to C is more complex because it requires more wires (CC pins) for PD charging negotiation. For mechanical keyboards, stick to USB-A to USB-C connections unless you are an advanced solderer.
